Evolution of Web Architecture

Architecture model

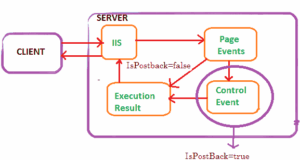

Web Forms implemented a server-owned UI model. The server controlled rendering and UI events. A user action typically triggered a full postback, executing the ASP.NET page lifecycle and returning a new HTML document.

Request execution and lifecycle

1. Init
2. Load ViewState
3. Load Postback Data
4. Raise Events (e.g., Button_Click)
5. Render
6. Save ViewState

This lifecycle made behavior implicit: code execution depends on phase ordering, control state hydration, and event wiring. It’s productive when you’re “inside the model,” but it raises the cost of debugging and refactoring at scale.

State: ViewState + Session (why scale was harder)

• ViewState: serialized control state embedded into the page (hidden fields), increasing payload size and sometimes becoming a perf bottleneck.
• Session: storing user state server-side often encouraged sticky sessions, complicating horizontal scale and adding memory pressure.

Code example: Web Forms (UI + logic coupled)

// CreateAppointment.aspx.cs
protected void btnSave_Click(object sender, EventArgs e)
{
    var appt = new Appointment
    {
        Date = DateTime.Parse(txtDate.Text),
        UserId = Session["UserId"].ToString()
    };
    AppointmentService.Save(appt);
    Response.Redirect("Appointments.aspx");
}

Architecture constraints (long-term)

• UI ↔ backend coupling: business logic tends to live “behind” pages, reducing reuse.
• Statefulness: session/viewstate patterns reduce elasticity and complicate load balancing.
• Operational boundaries: UI and backend deploy together; changes often feel riskier.

Architecture model

Modern web systems typically treat the UI as a client application (Vue SPA or hybrid), and treat the backend as a set of stateless capabilities exposed via versioned APIs. This enforces an explicit boundary: contracts over coupling.

API boundary (contract-driven)

• Resources, not pages (e.g., /appointments)
• HTTP semantics (GET/POST/PUT/DELETE)
• Consistent error shapes (validation, auth, server)
• Versioning to decouple deployments (/v1, /v2)

POST /api/v1/appointments

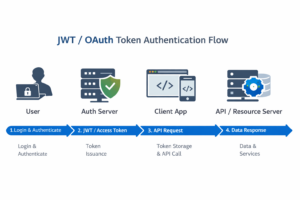

Authorization: Bearer <JWT>
Content-Type: application/json


Code example: API controller (backend decoupled from UI)

[ApiController]
[Route("api/v1/appointments")]
public class AppointmentsController : ControllerBase
{
    [HttpPost]
    public IActionResult Create(CreateAppointmentDto dto)
    {
        var created = _service.Create(dto);
        return CreatedAtAction(nameof(GetById), new { id = created.Id }, created);
    }
    [HttpGet("{id}")]
    public IActionResult GetById(int id) => Ok(_service.Get(id));
}

Code example: Vue component (UI owns rendering + UX state)

<script setup>
import { ref } from 'vue'
import api from '@/api'
const date = ref('')
async function save() {
  await api.post('/appointments', { date: date.value })
}
</script>
<template>
  <label>Date</label>
  <input v-model="date" />
  <button @click="save">Save</button>
</template>

Security and scalability (practical implications)

• Security: enforce authN/authZ at the API boundary; consistent policy regardless of UI client.
• Scale: stateless APIs simplify load balancing and autoscaling; caching becomes more straightforward.
• Operations: independent deployment of frontend/backend; contract tests reduce integration risk.
