Kubernetes Gateway API: Simplifying Network Management in Containerized Environments

Introduction

As organizations increasingly adopt containerization to improve scalability and efficiency, the need for robust and flexible network management solutions becomes paramount. Kubernetes, the popular container orchestration platform, offers a powerful Gateway API feature that simplifies network management in containerized environments. This blog will explore the Kubernetes Gateway API and its benefits for managing network traffic within a Kubernetes cluster.

The Future of Ingress for Kubernetes

The future of Ingress for Kubernetes is undoubtedly leaning toward the Gateway API. With the continuous evolution of Kubernetes, the need for a more flexible and powerful solution for routing traffic grows increasingly pressing. The Gateway API is poised to meet this need, offering a unified, extensible, and feature-rich solution capable of catering to the demands of modern application architectures.

What is the Gateway API?

Gateway API is an open-source project managed by the SIG-NETWORK community, is a cutting-edge project that prioritizes L4 and L7 routing in Kubernetes. It stands as the future of Kubernetes Ingress, Load Balancing, and Service Mesh APIs, boasting a design that is generic, expressive, and role-oriented from its inception. These resource – GatewayClass, Gateway, HTTPRoute, TCPRoute, TLSRoute, etc.

Simplified Network Configuration with the Kubernetes Gateway API

One of the key challenges in containerized environments is managing network traffic between different services and applications. Traditionally, this task has been complex and error-prone, requiring manual configuration of network policies and routing rules. However, the Gateway API simplifies this process by providing a declarative way to define and manage network resources.

With the Gateway API, you can define a set of desired network configurations in a Kubernetes manifest file. This includes defining gateways, which act as entry points for external traffic, and routes, which define how traffic is routed to different services within the cluster. By using familiar Kubernetes manifest files, you can leverage the same infrastructure-as-code approach for managing network resources as you do for managing other Kubernetes objects.

Enhanced Traffic Management and Load Balancing

In addition to simplifying network configuration, the Kubernetes Gateway API offers advanced traffic management capabilities. It allows you to define traffic policies and apply them to specific routes, enabling fine-grained control over how traffic is distributed and load-balanced within the cluster.

For example, you can define traffic splitting rules to distribute traffic between multiple service versions, allowing for canary deployments and A/B testing. You can also configure circuit breakers and rate limiters to protect your services from being overwhelmed by excessive traffic. These advanced traffic management features empower developers and operators to optimize the performance and resilience of their applications running on Kubernetes.

Seamless Integration with Existing Networking Solutions

The Kubernetes Gateway API is designed to seamlessly integrate with existing networking solutions, making it easy to adopt and extend. It supports multiple networking protocols, including HTTP, TCP, and UDP, allowing you to build complex network topologies that meet your specific requirements.

Furthermore, the Gateway API can be used with other Kubernetes networking features, such as Ingress controllers and service meshes, to create a comprehensive network management solution. This flexibility enables you to leverage your existing investments in networking infrastructure while taking advantage of the simplicity and power of the Kubernetes Gateway API.

Getting Hands-on with the Gateway API

Let’s walk through a simple example. Assume your team has created a microservice application which the team want to run in Kubernetes. And the application will be used by the client outside the cluster. In this example, a Gateway and HTTPRoute are deployed which match all HTTP traffic and directs it to a single Service named my-service.

The Cluster operator will create a Gateway named example-gateway that listens for HTTP traffic on port 80 in the default namespace.

apiVersion: gateway.networking.k8s.io/v1
kind: Gateway
metadata:
  name: example-gateway
  namespace: default
spec:
  gatewayClassName: example-gateway-class
  listeners:
  - protocol: HTTP
    port: 80
    name: http
    allowedRoutes:
      namespaces:
        from: Same

So now the Application developer can create routing rules in the same namespace where their service resides, in this case, default, and bind to the Gateway via parentRefs. This HTTPRoute will match all HTTP traffic that arrives at port 80 of the load balancer and send it to the my-service Pods.

apiVersion: gateway.networking.k8s.io/v1
kind: HTTPRoute
metadata:
  name: exampe-route
  namespace: default
spec:
  parentRefs:
  - name: exampe-gateway
  rules:
  - backendRefs:
    - name: my-service
        port: 8080

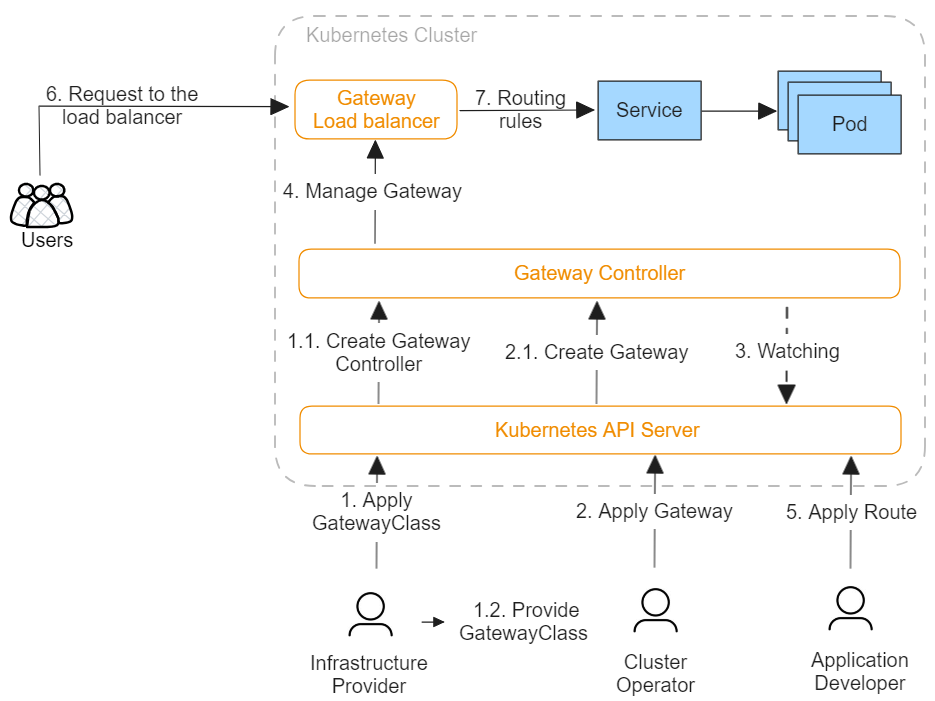

The following diagram shows the workflow of the Gateway API.



The detailed process is as follows:

• The Infrastructure Provider provisions a cluster running a Gateway Controller with a GatewayClass resource. The Gateway Controller manages the infrastructure associated with routing traffic from outside the cluster to inside the cluster.
• The Infrastructure Provider provides GatewayClass to the Cluster Operator.
• The Cluster Operator applies a Gateway that is associated with the GatewayClass.
• Gateway Controller continuously monitors changes to the GatewayClass and Gateway objects in the Kubernetes API Server then it will create the corresponding gateway based on cluster operations and maintenance configuration.
• Application Developer writes and applies HTTPRoute resources to configure which URL paths are allowed and bind them to the service.
• The client accesses the load balancer, and the gateway will route to the corresponding back-end service based on the matching criteria in the traffic request.

The Gateway API offers a distinct division of roles in comparison to Ingress. This allows for routing rules to be separated from the gateway configuration, leading to a significant increase in management flexibility.

Conclusion

The Kubernetes Gateway API provides a simplified and flexible approach to network management in containerized environments. By leveraging the declarative nature of Kubernetes manifest files, organizations can easily define and manage network resources within a Kubernetes cluster. With advanced traffic management features and seamless integration with existing networking solutions, the Gateway API empowers developers and operators to build scalable and resilient applications. As containerization continues to gain momentum, the Kubernetes Gateway API is set to become an essential tool for managing network traffic in Kubernetes clusters.
