Mediator Pattern in Clean Architecture

1. Introduction

In modern backend systems, especially those built with Clean Architecture, the Mediator pattern plays a critical role in enforcing separation of concerns, reducing coupling, and keeping business logic isolated from controllers, infrastructure, and frameworks.

In .NET, this is often implemented using the MediatR library — but the ideas apply to any language or platform.

This article explains the pattern in a deeply technical way, with diagrams, use-cases, anti-patterns, and a full request pipeline breakdown.

2. The Problem the Mediator Pattern Solves

Without a mediator, controllers call services, which call other services, which call repositories, which reference other components.

This leads to:

• Tight coupling between layers
• Difficult unit testing because dependencies multiply
• Implicit flows (logic scattered across multiple services)
• Hard-to-maintain orchestration code inside controllers or services

Controller → ServiceA → ServiceB → RepoA → RepoB
Changes ripple everywhere.

The Mediator pattern fixes this.

3. What the Mediator Pattern Does

Instead of components calling each other directly, they send messages (commands, queries, events) to a Mediator, which routes the message to a single handler.

Controller → Mediator → Handler → Repository
This enforces one action = one handler.

Benefits:

• Predictable flow
• Zero direct dependencies between features
• Perfect for CQRS
• Enables pipeline behaviors (logging, validation, transactions)
• Clean, testable business logic

4. Mediator in Clean Architecture

In Clean Architecture:

• Controllers live in the outer layer
• Use cases live in the application layer
• Business rules must not depend on frameworks

The Mediator becomes the use case invoker.

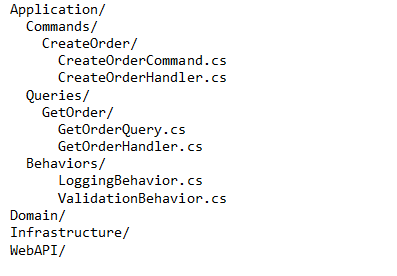

Folder Structure Example

5. Command vs Query (CQRS)

The Mediator pattern naturally supports CQRS.

Commands:

• Perform an action
• Change state
• Should not return complex objects

Queries:

• Read-only
• Return data
• No side effects

Both go through the mediator.

6. Example: CreateOrder Command

Command

public record CreateOrderCommand(string CustomerId, decimal Amount) : IRequest<Guid>;

Handler

public class CreateOrderHandler : IRequestHandler<CreateOrderCommand, Guid>
{
    private readonly IOrderRepository _repo;

    public CreateOrderHandler(IOrderRepository repo)
    {
        _repo = repo;
    }

    public async Task<Guid> Handle(CreateOrderCommand request, CancellationToken ct)
    {
        var order = new Order(request.CustomerId, request.Amount);
        await _repo.Save(order);
        return order.Id;
    }
}

Controller

[HttpPost]
public async Task<IActionResult> Create(CreateOrderCommand cmd)
{
    var id = await _mediator.Send(cmd);
    return Ok(id);
}

Notes:

• No service layer required
• No direct dependency on domain or repositories
• Business logic is fully contained in handler

7. Pipeline Behaviors (The Secret Weapon)

Pipeline behaviors allow cross-cutting concerns without polluting handlers.

Examples:

• Validation
• Logging
• Transaction/unit-of-work
• Caching
• Authorization
• Performance tracking

Logging Behavior Example

public class LoggingBehavior<TRequest, TResponse> : IPipelineBehavior<TRequest, TResponse>
{
    public async Task<TResponse> Handle(
        TRequest request,
        RequestHandlerDelegate<TResponse> next,
        CancellationToken ct)
    {
        Console.WriteLine($"Handling {typeof(TRequest).Name}");
        var response = await next();
        Console.WriteLine($"Handled {typeof(TResponse).Name}");
        return response;
    }
}

Each request passes through the pipeline in order.

8. Why Mediator Fits Clean Architecture Perfectly

1. Dependency Rule is preserved.
   Controllers → Mediator → Application layer → Domain.
2. Use cases become explicit.
   Every operation is represented by a Command or Query.
3. Testing becomes trivial.
   You test each handler independently.
4. Easy to add cross-cutting logic.
   Pipeline behaviors act like middleware at the use-case level.

9. Common Anti-Patterns (Important)

❌ Putting business logic in controllers
❌ “Service Layer” that duplicates handlers
❌ Handlers calling handlers
❌ God-handlers doing too much
❌ Mixing Commands and Queries

10. Real Use Cases in Large Systems

E-commerce

• PlaceOrder
• CancelOrder
• GetOrderDetails
• GetCustomerOrders

Banking

• TransferFunds
• GetTransactionHistory

Booking Systems

• BookTicket
• CheckAvailability

These systems scale cleaner when business operations are isolated as handlers.

11. Sequence Diagram (Text Version)

Controller → Mediator → CreateOrderHandler
Controller sends request → Mediator resolves handler → Handler processes → Returns OrderId → Mediator returns to Controller.

12. Summary

The Mediator pattern is a core building block for Clean Architecture because it:

• Makes use cases explicit
• Enforces clean boundaries
• Simplifies controllers
• Eliminates service coupling
• Enables powerful pipelines
• Works perfectly with CQRS
• Keeps business logic isolated and testable

If your application is growing, Mediator helps keep it modular, predictable, and scalable.
