Introduction

In today’s complex software systems, logging plays a vital role in monitoring application behavior, identifying issues, and troubleshooting problems. As applications scale and become distributed, managing logs from multiple sources can be challenging. This is where Logstash, a popular log aggregation tool, comes to the rescue. In this blog, we will explore how to integrate Logstash with Spring Boot, a powerful Java framework, to efficiently collect, process, and analyze logs from your applications.

Why Log Aggregation Matters

Before we dive into Logstash integration, let’s understand the importance of log aggregation. Log aggregation involves gathering logs from various sources, centralizing them in a single location, and analyzing them for insights and troubleshooting purposes. Here are some key reasons why log aggregation matters:

1. Centralized Log Storage: By aggregating logs in a central location, you gain easy access to log data from multiple applications or components. This simplifies troubleshooting, as you don’t have to search through scattered logs on different systems.

2. Simplified Debugging: Aggregating logs enables you to monitor application behavior in real-time. You can identify patterns, detect anomalies, and troubleshoot issues more effectively by analyzing logs from different sources simultaneously.

3. Performance Monitoring: Log aggregation provides valuable insights into application performance. By analyzing log data, you can identify bottlenecks, track response times, and optimize your application for better performance.

4. Compliance and Auditing: Centralized log storage aids in compliance with regulatory requirements. It allows auditors to review logs easily, ensuring data security, and meeting audit standards.

Integrating Logstash with Spring Boot

Now let’s explore the process of integrating Logstash with Spring Boot. Spring Boot is a popular Java framework that simplifies the development of robust and scalable applications. Logstash, on the other hand, is a powerful open-source log processing and aggregation tool.

Step 1: Setting Up Logstash:

To begin, you need to install Logstash on your system. Logstash is built on Java, so make sure you have Java installed and properly configured. Visit the other blog for more information on setting up the logstash based on particular operating system.

Step 2: Configuring Logstash:

Once Logstash is installed, you need to configure it to receive logs from your Spring Boot application. Logstash uses a configuration file written in the Logstash configuration language, which is based on JSON syntax. This file specifies the inputs, filters, and outputs for Logstash.

Create a new configuration file named `logstash.conf` and open it in a text editor. Add the following code to configure Logstash to listen for logs over TCP:

In this example, Logstash is configured to listen for logs on TCP port 5000 and expects the logs to be in JSON format. You can modify the configuration according to your requirements, such as using different input plugins or adding filters for log parsing and transformation.

Step 3: Adding Logstash Dependencies to Spring Boot:

In your Spring Boot project, you need to add the necessary dependencies to integrate with Logstash. Open your project’s build configuration file (pom.xml for Maven or build.gradle for Gradle) and include the Logstash Logback Encoder dependency. This dependency provides the required components to send logs from your Spring Boot application to Logstash.

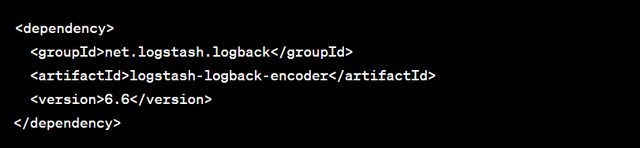

For Maven, add the following dependency to your `pom.xml`:

For Gradle, add the following dependency to your `build.gradle`:

Step 4: Configuring Logback:

Logback is the default logging framework in Spring Boot, and we will configure it to send logs to Logstash. Create a `logback-spring.xml` file in the resources directory of your Spring Boot project. In this configuration file, define an appender that sends logs to Logstash using the Logstash Logback Encoder.

Add the following code to your `logback-spring.xml` file:

In this example, we configure Logback to use the LogstashTcpSocketAppender, which sends logs to the specified destination (in this case, `localhost:5000`). You can modify the destination according to your Logstash configuration.

Step 5: Testing the Integration:

With Logstash and Spring Boot configured, you can now test the integration. Start your Spring Boot application, and Logstash will start receiving logs according to the Logback configuration. Monitor the Logstash logs or check the configured output destination to ensure that the logs are being successfully aggregated.

Analyzing Aggregated Logs:

Once your logs are aggregated in Logstash, you can leverage various tools and techniques to analyze and gain insights from the collected data. Here are a few approaches you can consider:

1. Elasticsearch and Kibana: Logstash seamlessly integrates with Elasticsearch, a powerful search and analytics engine. By storing logs in Elasticsearch, you can perform complex queries, build custom visualizations, and create insightful dashboards using Kibana. This combination provides a robust log analysis and monitoring solution.

2. Log Analysis Tools: Numerous log analysis tools are available that can ingest logs from Logstash and provide advanced analytics capabilities. These tools offer features such as log search, real-time alerting, anomaly detection, and log correlation, helping you extract meaningful insights from your logs.

3. Custom Analysis: If you have specific requirements, you can develop your custom log analysis scripts or applications. By programmatically processing the aggregated logs, you can extract relevant metrics, generate custom reports, and perform in-depth analysis tailored to your application’s needs.

Best Practices for Logstash Integration:

To ensure a successful Logstash integration with Spring Boot, consider the following best practices:

1. Log Level Configuration: Properly configure log levels in your Spring Boot application to ensure that only relevant logs are sent to Logstash. This helps in reducing noise and optimizing log processing.

2. Structured Logging: Implement structured logging in your application by using log formats like JSON or key-value pairs. Structured logs are easier to parse and analyze, providing better insights into your application’s behavior.

3. Log Rotation and Archiving: Implement log rotation and archiving mechanisms to manage log files effectively. This prevents log files from becoming too large and ensures efficient storage utilization.

4. Security Considerations: Apply security measures when transmitting and storing log data. Encrypt communication between your Spring Boot application and Logstash, and secure access to Logstash and the log storage destination.

Conclusion:

Integrating Logstash with Spring Boot enables efficient log aggregation and analysis, offering valuable insights into application behavior and simplifying troubleshooting. By centralizing logs, you can easily monitor and analyze them, leading to improved debugging, performance optimization, and compliance with auditing requirements.

Remember to follow best practices, configure log levels appropriately, and leverage log analysis tools or custom scripts for in-depth analysis. With Logstash and Spring Boot working together, you can effectively manage your application logs and harness the power of log aggregation for enhanced application monitoring and analysis.

So, go ahead and start integrating Logstash with your Spring Boot applications, and unlock the full potential of streamlined log management and analysis.

References

For a comprehensive guide on installing Logstash, please refer to my other blog post titled “Log Aggregation Made Easy with Logstash: A Guide to Installation“
