Employing GitOps for Infrastructure and Applications Utilizing Crossplane and Argo CD

Key takeaways:

The fundamental objective of DevOps is to facilitate self-service capabilities and foster collaboration between developers and operators. By integrating Crossplane within a GitOps framework, both groups now share a unified language for communication.

This eliminates the necessity for disparate workflows that might cause confusion for either party. Embracing a unified workflow for both infrastructure and applications truly embodies the ethos of DevOps.

GitOps and Terraform

The core tenets of GitOps encompass:

1. The system’s configuration is articulated in a declarative manner, typically realized through Kubernetes manifests.
2. The system’s definition is versioned and subjected to audit trails, typically stored within Git repositories.
3. An automated software agent regularly fetches the state from Git and aligns it with the platform’s current state, commonly achieved through tools like Flux or ArgoCD.
4. Continuous reconciliation ensures that any alterations made in Git are promptly mirrored within the system. Git serves as the authoritative source of truth in this context.

If you’re familiar with Terraform, you likely understand the challenges of applying GitOps to the Terraform CLI. Terraform meets the first requirement by utilizing a declarative format. However, it falls short in fulfilling the other three GitOps principles related to Git storage, automated reconciliation, and bidirectional synchronization.

Once Terraform completes its execution, it disengages from the system. Therefore, if you manually remove a resource, such as a Virtual Machine created by Terraform, the vanilla Terraform setup remains unaware of the change. Additionally, Terraform maintains its own state, which differs entirely from the definition files stored in Git.

Initially, integrating GitOps with infrastructure might seem complex. It becomes evident that to meet GitOps prerequisites, additional layers need to be incorporated atop vanilla Terraform.

However, there’s a newcomer on the scene: Crossplane!

GitOps and Crossplane

apiVersion: ec2.aws.crossplane.io/v1alpha1
kind: Instance
metadata:
  name: ec2-instance
spec:
  forProvider:
    region: us-east-1
    imageId: ami-0d23d3e4c0f9ebd1843
    securityGroupRefs:
      - name: ex-cluster-sg
    subnetIdRef:
      name: sample-subnet1
  providerConfigRef:
    name: example

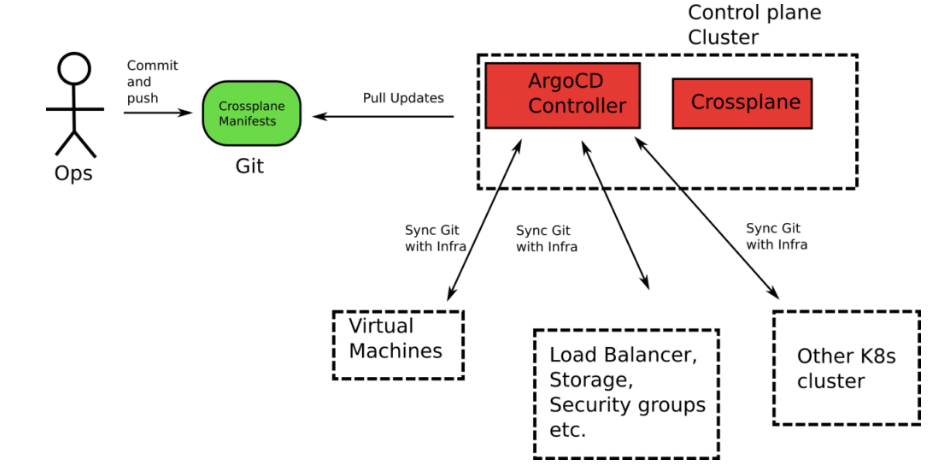

How ArgoCD and Crossplane work together

Crossplane simplifies the process of modeling your infrastructure using Kubernetes manifests. While this is beneficial on its own, incorporating ArgoCD into the equation offers numerous advantages, essentially bringing all the benefits of GitOps to your infrastructure management.

1. Clear Visibility: You have a comprehensive overview of your infrastructure simply by examining the Git repository.
2. Change Tracking: By analyzing the Git history, you can precisely identify what alterations were made and when they occurred.
3. Synchronization: The state of your infrastructure perfectly aligns with the state stored in Git. Unlike Terraform, which maintains its own state as the single source of truth, Crossplane ensures consistency between infrastructure and Git states.
4. Enhanced Security: External credentials become unnecessary, streamlining the authentication process.
5. Rollback Capability: Reverting to a previous version of your infrastructure is effortless with Git’s reset or revert functionalities.
6. Elimination of Configuration Drift: By embracing GitOps, you mitigate the risks associated with configuration drift, ensuring that your infrastructure remains consistent and compliant.

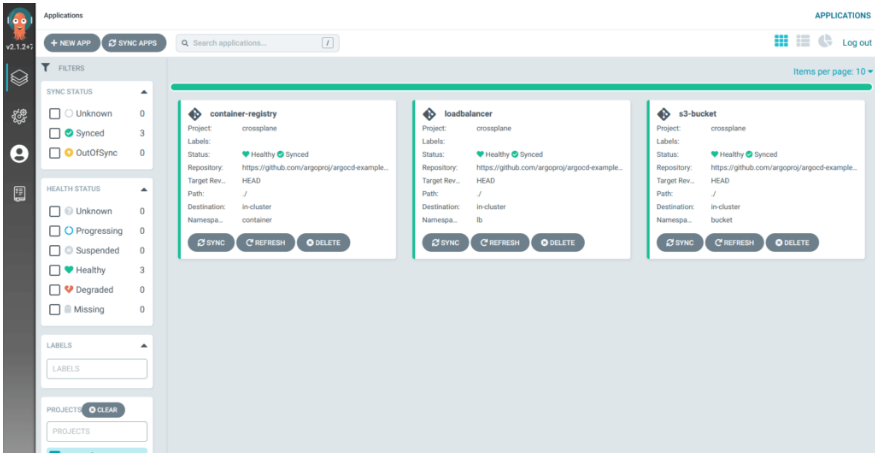

ArgoCD essentially remains agnostic regarding the content of the Kubernetes manifests it oversees. These manifests can encompass a wide array of resources, including standard Kubernetes applications, virtual machines, container registries, load balancers, object storage configurations, firewall rules, and more.

Implementing infrastructure creation and deployment through GitOps

Now that we’ve established the seamless integration of ArgoCD and Crossplane for infrastructure management, we’re poised to extend this synergy to application and platform management.

This entails the following workflow:

1. Starting from Scratch: Begin with a clean slate.
2. Utilizing Crossplane for Cluster Provisioning: Employ Crossplane to instantiate a Kubernetes cluster.
3. Version Control and Management with ArgoCD: Commit the Crossplane manifest to version control and administer it through ArgoCD.
4. Application Deployment Using Standard Manifests: Deploy an application to the newly provisioned cluster using a standard manifest (e.g., deployment).
5. Git-Based Management: Similarly, commit this application manifest to Git. ArgoCD will then oversee it akin to any other Kubernetes manifest, despite its representation of infrastructure components.

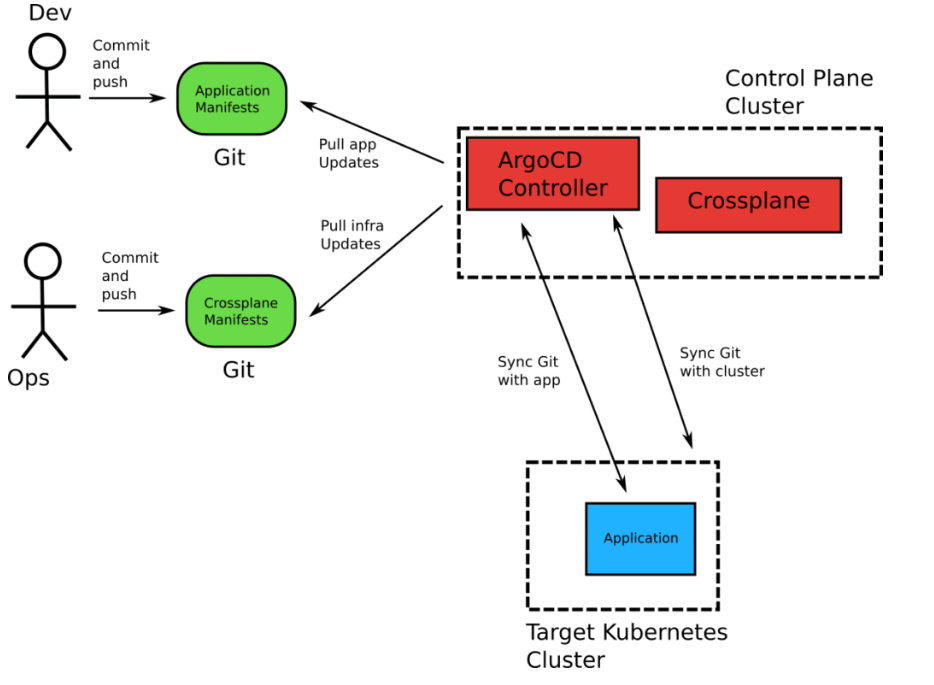

Here is the whole workflow:

The Kubernetes cluster where Crossplane operates serves solely to initialize Crossplane itself; it doesn’t host any production workloads. For basic demonstrations, this cluster can be any instance, including a local one running on your workstation.

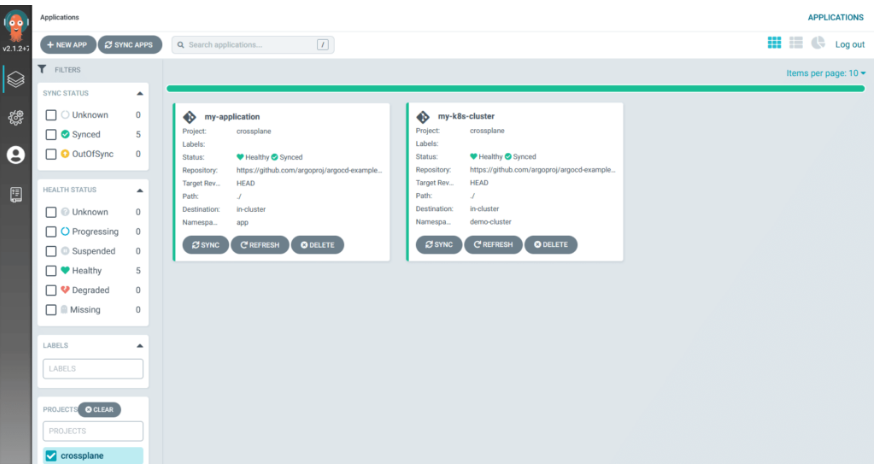

The outcome is a unified approach to managing both infrastructure and applications directly through Argo CD.
