Publish Package to Terraform Private Registry Using Azure Pipeline

Vaibhav Kumar
Vaibhav Kumar
Table of Contents
Close up of computer coding

Terraform Cloud provides the facility to store your terraform data. You can store your tfstate files on workspaces and keep the whole set of module packages with all tf files on the registry. The registry is both Public and Private. And here, we will deal with the private registry for creating terraform module and push terraform package.


  1. Terraform Cloud Id
  2. Azure DevOps Id
  3. GitHub Id
  4. Understanding of API

Basic Setup for Terraform Cloud Module

We set up each environment one by one before creating the pipeline.
1. Create a Token on Terraform Cloud to access the API.
2. Now we need to check the access to create module.
3. Connect GitHub to Azure DevOps.
4. Connecting repository to Azure Pipeline.

All these four setups were done in last blog named: Create Module in Private Terraform Registry with Azure Pipeline

Now we will add a Group Variable named “TerraformRegistryVariables” with values for TERRAFORM_REGISTRY_TOKEN and TF_ORGANISATION and then add your pipeline in permissions.

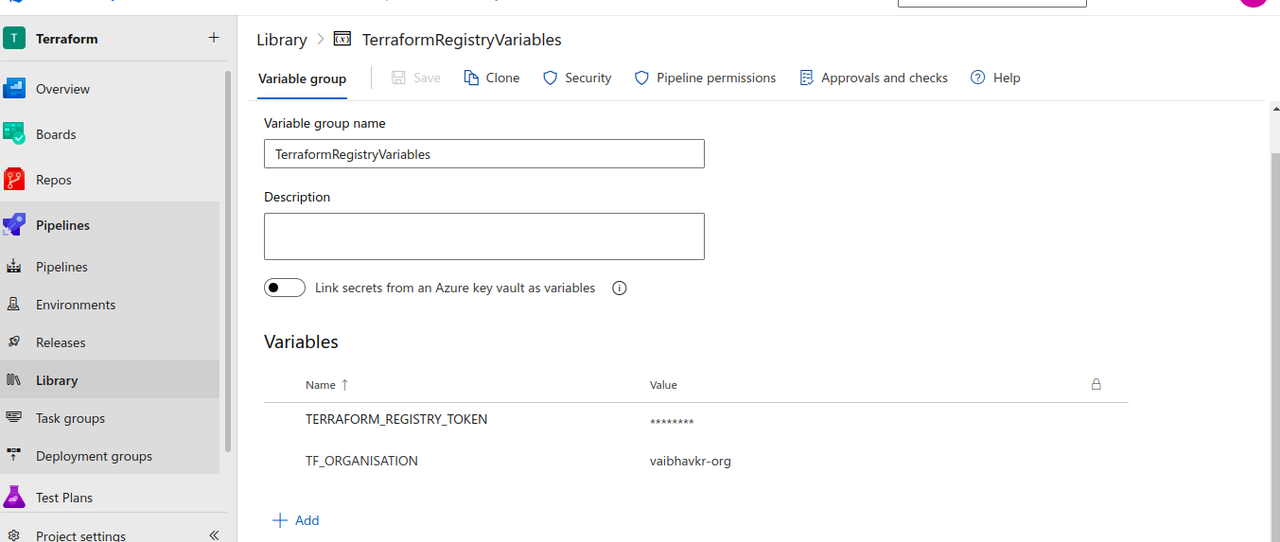

module registry

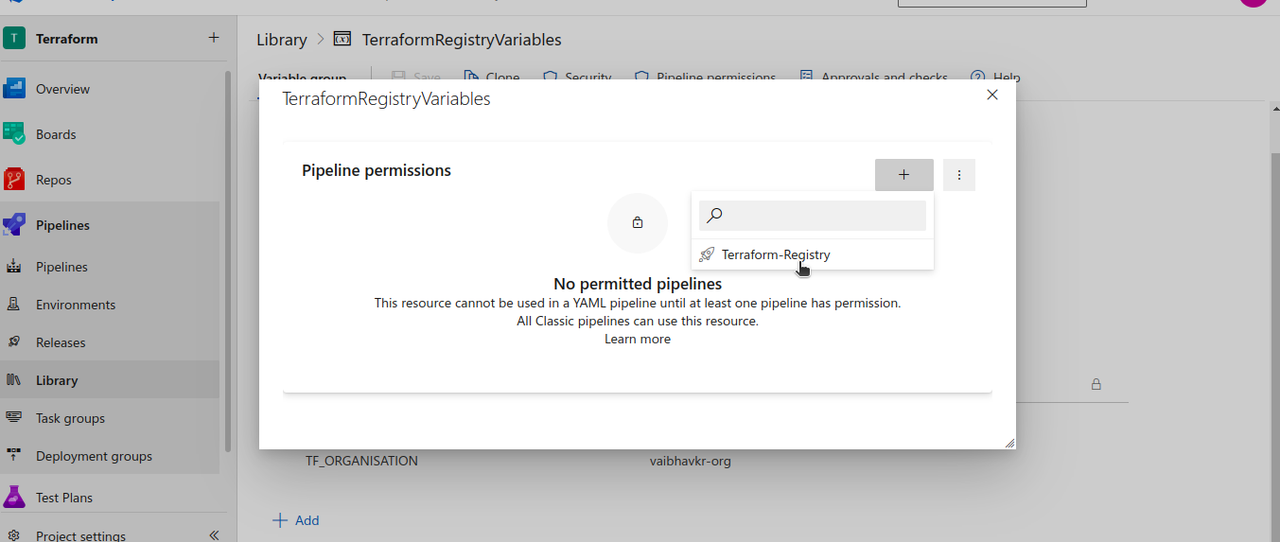

add pipeline for modue

We need to create version.json to add version before pushing packages in following way:

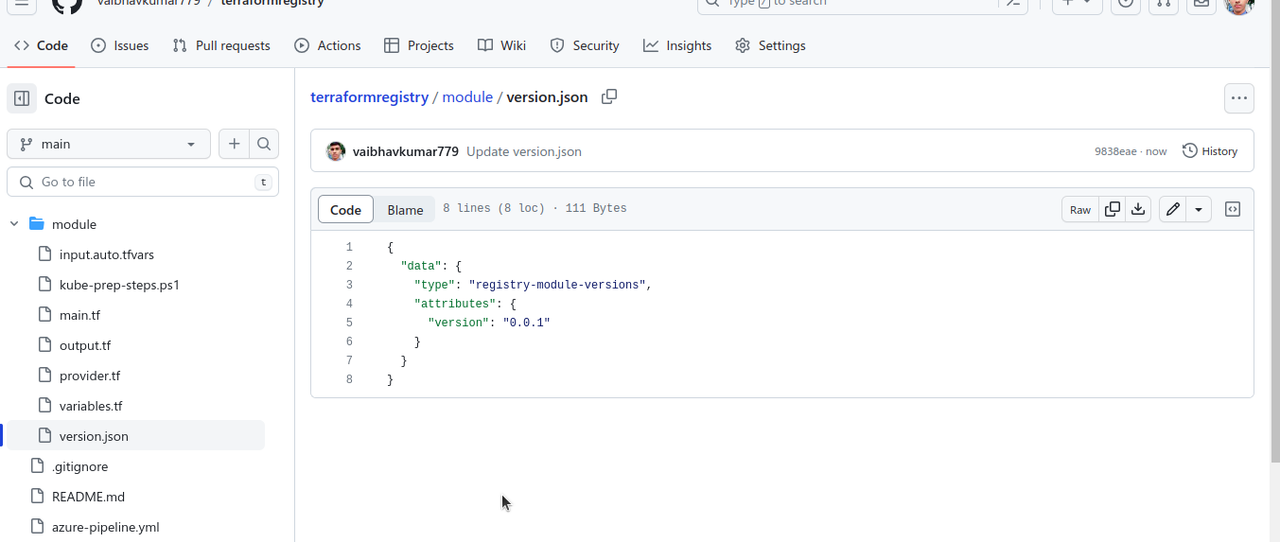

version.json file

Azure Pipeline for Terraform package

We will use following pipeline:


  vmImage: 'ubuntu-latest'



      displayName: "LocationOfJsonForModule"

      type: string

      default: "module.json"


      displayName: "LocationOfJsonForVersion"

      type: string

      default: "module/version.json"



      displayName: "LocationOfPackage"

      type: string

      default: "module"


    - name: MODULE_NAME

      displayName: "NameOfModuleInRegistry"

      default: "aks"

      type: string

    - name: PROVIDER

      displayName: "TerraformCloudProvider"

      type: string

      default: "azurerm"


- group: TerraformRegistryVariables


  - job: "TerraformPackaging"


      - checkout: self

        displayName: Clean Checkout

        clean: true

      - script: |

          curl  --header "Authorization: Bearer $(TERRAFORM_REGISTRY_TOKEN)" --header "Content-Type: application/vnd.api+json" --request POST --data @${{ parameters.JSON_MODULE_LOCATION }}$(TF_ORGANIZATION)/registry-modules | jq -r

        displayName: "Terraform Registry Module Creation"

        name: "ModuleCreation"

      - script: |

          tar cvfz ${{ parameters.MODULE_NAME }}.tar.gz ${{ parameters.TERRAFORM_PACKAGE_LOCATION }}/*


        displayName: "Terraform Module Package Build"

        name: "PackageBuild"


      - script: |

          export version_url="$(TF_ORGANIZATION)/registry-modules/private/$(TF_ORGANIZATION)/${{ parameters.MODULE_NAME }}/${{ parameters.PROVIDER }}/versions"

          export push_url=$(curl --location {$version_url} --header 'Content-Type: application/vnd.api+json' --header 'Authorization: Bearer $(TERRAFORM_REGISTRY_TOKEN)' --data @${{ parameters.JSON_VERSION_LOCATION }} | jq -r '.data.links.upload')

          curl --location $push_url --request PUT  --header 'Content-Type: application/octet-stream'  --data-binary @${{ parameters.MODULE_NAME}}.tar.gz

        displayName: "Package Push"

        name: "PackagePush"

The Terraform Module Package pipeline requires the following parameters and variables:

JSON_MODULE_LOCATIONlocation of module.json filestring“module.json”
TERRAFORM_MODULE_VERSIONlocation of version.json filestring“version.json”
TERRAFORM_MODULE_LOCATIONTerraform Module Package LocationString“module”
TERRAFORM_MODULE_NAMEName of modulestring“aks”
TERRAFORM_REGISTRY_TOKENTerraform registry access tokenstringThis value from variable group
TF_ORGANIZATIONName of Organisationstring“TerraformRegistryVariables”
PROVIDERName of Providerstring“azurerm”

There are 3 sections in the pipeline:

  1. ModuleCreation: Already defined its working in the blog: Create Module in Private Terraform Registry with Azure Pipeline, if there is already a module with same configuration no new module is created.
  2. PackageBuild:
    • This step has the script where it creates a tar file for the terraform module package.
  3. PackagePush:
    • This step has two POST requests:
      • Firstly, the POST method creates generates an URL to push package to terraform cloud module.
      • Secondly, the POST method pushes the packages to the module created in first step.

And now, we run the pipeline with all values required.

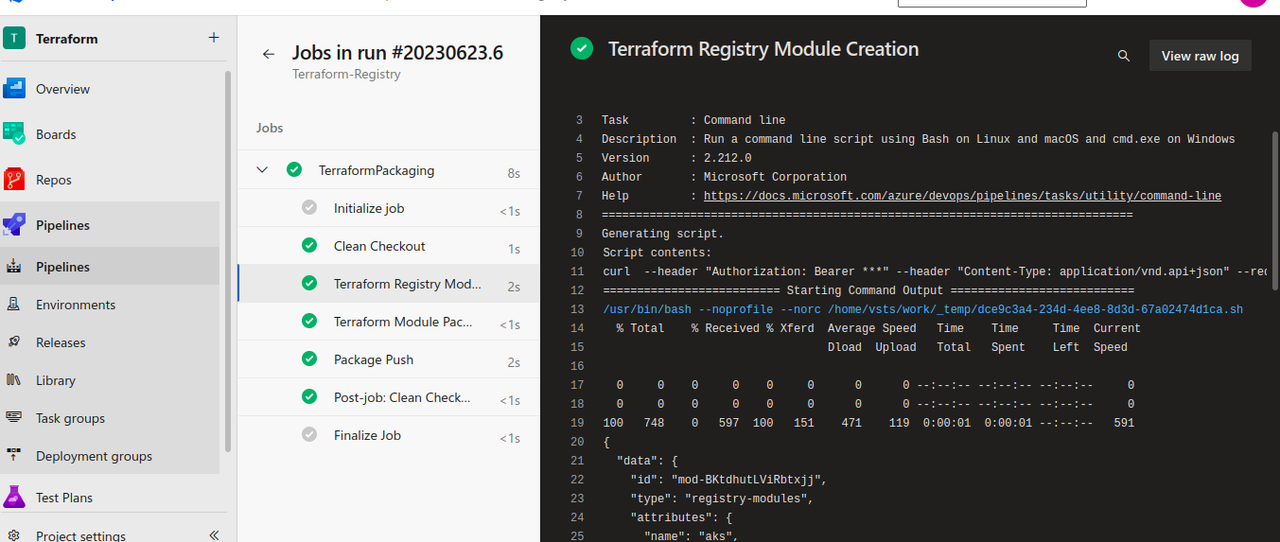

terraform module creation

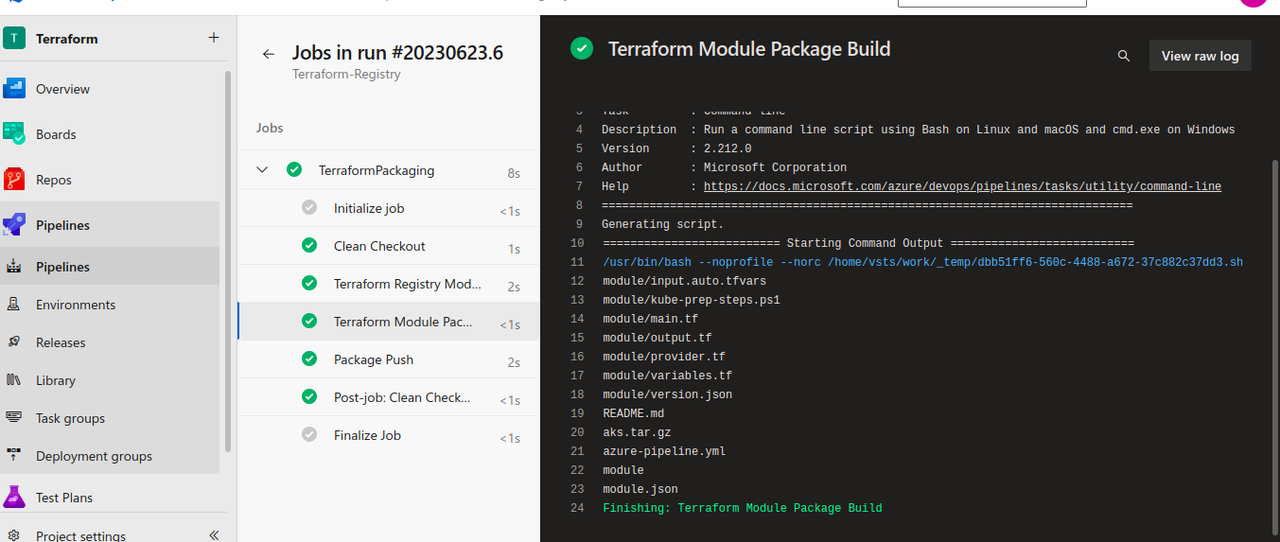

package creation

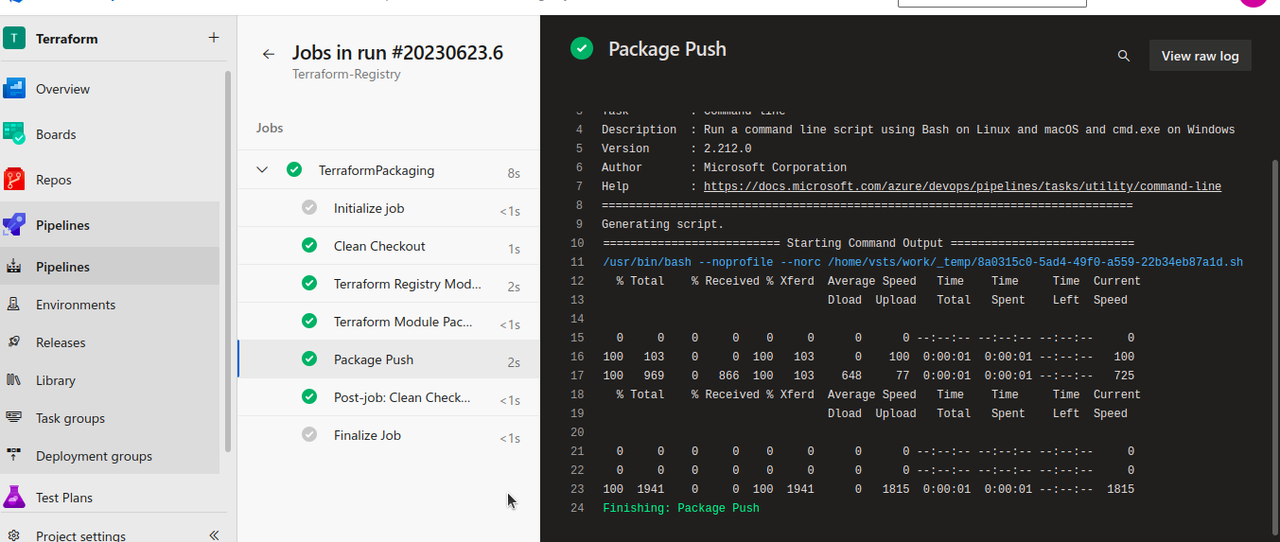

terraform package push

And now, when we visit the module, we will see the package pushed.

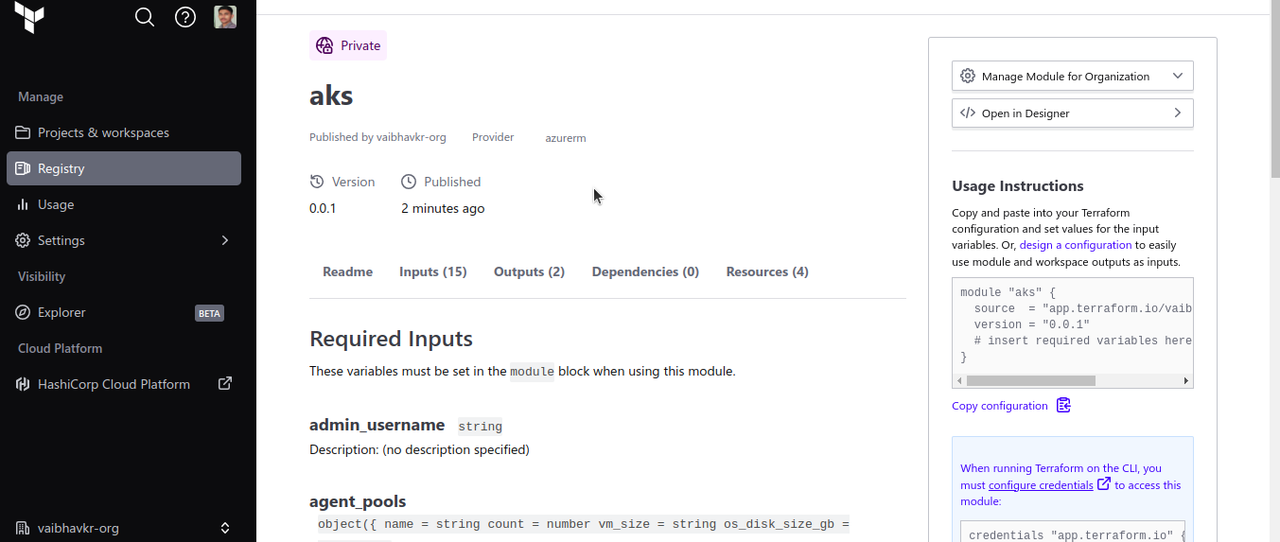

aks package pushed

All the source material is available at the repository
